util.h File Reference

Utilitary stuff. More...

#include <compy/option.h>
#include <compy/types/error.h>
#include <compy/types/header_map.h>
#include <stdbool.h>
#include <stdint.h>
#include <slice99.h>

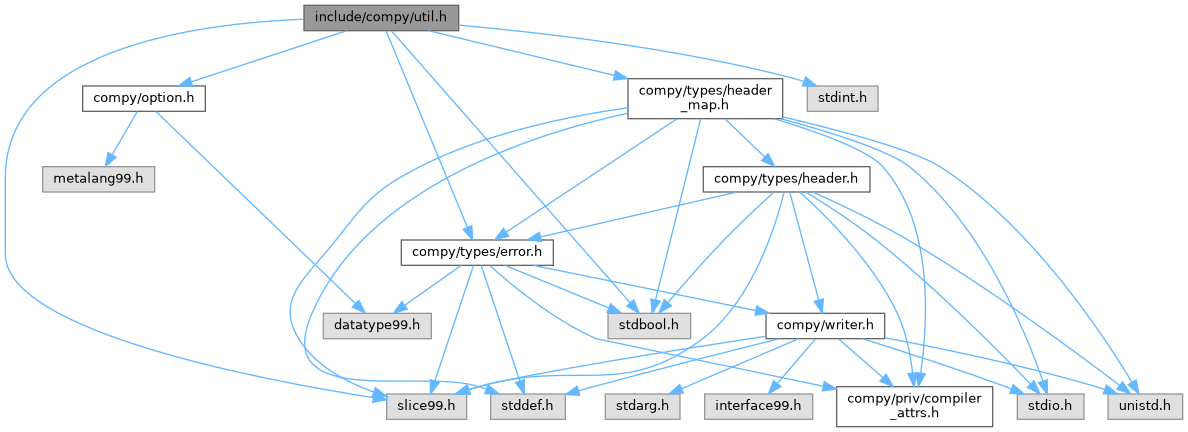

Include dependency graph for util.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Compy_PortPair
	An RTP/RTCP port pair specified as a range, e.g., client_port=3456-3457. More...
struct	Compy_ChannelPair
	An RTP/RTCP channel pair specified as a range, e.g., interleaved=4-5. More...
struct	Compy_TransportConfig
	The RTSP transport configuration. More...

Macros
#define	COMPY_CRLF   (CharSlice99_from_str("\r\n"))
	Carriage-return + new-line represented as a data slice.
#define	COMPY_DEFAULT_PORT   554
	The default RTSP port.
#define	COMPY_DEFAULT_RTSPS_PORT   322
	The default RTSPS port.
#define	COMPY_REQUIRE_ONVIF_BACKCHANNEL    (CharSlice99_from_str("www.onvif.org/ver20/backchannel"))
	The ONVIF backchannel feature tag.

Typedefs
typedef struct Compy_Context	Compy_Context

Enumerations
enum	Compy_LowerTransport { Compy_LowerTransport_TCP , Compy_LowerTransport_UDP }
	An RTSP lower transport. More...

Functions
const char *	Compy_LowerTransport_str (Compy_LowerTransport self)
	Converts self to a string representation ("TCP" for Compy_LowerTransport_TCP and "UDP" for Compy_LowerTransport_UDP).
	COMPY_DEF_OPTION (Compy_PortPair)
	Defines Compy_PortPairOption.
	COMPY_DEF_OPTION (Compy_ChannelPair)
	Defines Compy_ChannelPairOption.
int	compy_parse_transport (Compy_TransportConfig *restrict config, CharSlice99 header_value) COMPY_PRIV_MUST_USE
	Parses the Transport header.
bool	compy_require_has_tag (const Compy_HeaderMap *restrict headers, CharSlice99 tag) COMPY_PRIV_MUST_USE
	Checks whether a Require header is present in headers and contains the feature tag tag.
void	compy_respond_option_not_supported (Compy_Context *ctx, CharSlice99 tag)
	Responds with 551 Option not supported and an Unsupported header listing tag.
uint32_t	compy_interleaved_header (uint8_t channel_id, uint16_t payload_len) COMPY_PRIV_MUST_USE
	Returns a four-octet interleaved binary data header.
void	compy_parse_interleaved_header (const uint8_t data[restrict static 4], uint8_t *restrict channel_id, uint16_t *restrict payload_len)
	Parses an four-octet interleaved binary data header data.

Detailed Description

Utilitary stuff.

Macro Definition Documentation

COMPY_REQUIRE_ONVIF_BACKCHANNEL

#define COMPY_REQUIRE_ONVIF_BACKCHANNEL    (CharSlice99_from_str("www.onvif.org/ver20/backchannel"))

The ONVIF backchannel feature tag.

See also

https://www.onvif.org/specs/stream/ONVIF-Streaming-Spec.pdf Section 5.3.1

Enumeration Type Documentation

Compy_LowerTransport

enum Compy_LowerTransport

An RTSP lower transport.

Enumerator
Compy_LowerTransport_TCP	TCP.
Compy_LowerTransport_UDP	UDP.

Function Documentation

COMPY_DEF_OPTION() [1/2]

COMPY_DEF_OPTION

(

Compy_ChannelPair

)

Defines Compy_ChannelPairOption.

See Datatype99 for the macro usage.

COMPY_DEF_OPTION() [2/2]

COMPY_DEF_OPTION

(

Compy_PortPair

)

Defines Compy_PortPairOption.

See Datatype99 for the macro usage.

compy_interleaved_header()

uint32_t compy_interleaved_header	(	uint8_t	channel_id,
		uint16_t	payload_len
	)

Returns a four-octet interleaved binary data header.

Parameters

[in]	channel_id	The one-byte channel identifier.
[in]	payload_len	The length of the encapsulated binary data (network byte order).

See also

https://datatracker.ietf.org/doc/html/rfc2326#section-10.12

compy_parse_interleaved_header()

void compy_parse_interleaved_header	(	const uint8_t	data[restrict static 4],
		uint8_t *restrict	channel_id,
		uint16_t *restrict	payload_len
	)

Parses an four-octet interleaved binary data header data.

Parameters

[in]	data	The header to parse.
[out]	channel_id	The one-byte channel identifier.
[out]	payload_len	The length of the encapsulated binary data (host byte order).

Precondition

channel_id != NULL

payload_len != NULL

See also

https://datatracker.ietf.org/doc/html/rfc2326#section-10.12

compy_parse_transport()

int compy_parse_transport	(	Compy_TransportConfig *restrict	config,
		CharSlice99	header_value
	)

Parses the Transport header.

Parameters

[out]	config	The result of parsing. It remains unchanged on failure.
[in]	header_value	The value of the Transport header.

Returns

0 on success, -1 on failure.

Precondition

config != NULL

compy_require_has_tag()

bool compy_require_has_tag	(	const Compy_HeaderMap *restrict	headers,
		CharSlice99	tag
	)

Checks whether a Require header is present in headers and contains the feature tag tag.

The Require header value is compared as a whole against tag (not comma-separated). For multiple tags, check each separately.

Parameters

[in]	headers	The request header map.
[in]	tag	The feature tag to look for.

Returns

true if the Require header is present and matches tag.

Precondition

headers != NULL

compy_respond_option_not_supported()

void compy_respond_option_not_supported	(	Compy_Context *	ctx,
		CharSlice99	tag
	)

Responds with 551 Option not supported and an Unsupported header listing tag.

Use this when a request contains a Require header with a feature tag the server does not understand, per RFC 2326 Section 12.32.

Parameters

[in]	ctx	The request context.
[in]	tag	The unsupported feature tag value.

Precondition

ctx != NULL
