rtcp.h File Reference

RFC 3550 Section 6-compliant RTCP packet types. More...

#include <compy/priv/compiler_attrs.h>
#include <stddef.h>
#include <stdint.h>
#include <slice99.h>

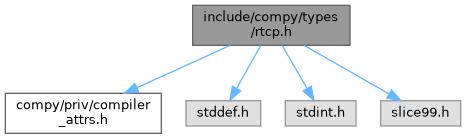

Include dependency graph for rtcp.h:

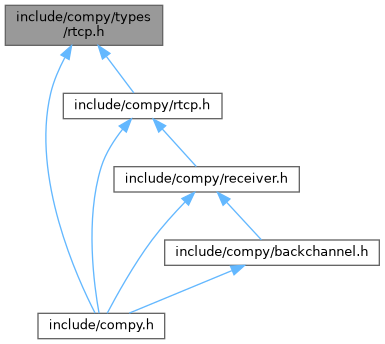

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Compy_RtcpHeader
	RTCP common header (RFC 3550 Section 6.4.1). More...
struct	Compy_RtcpSenderInfo
	RTCP Sender Report sender info (RFC 3550 Section 6.4.1). More...
struct	Compy_RtcpReportBlock
	RTCP Receiver Report block (RFC 3550 Section 6.4.2). More...

Macros
#define	COMPY_RTCP_SR   200
#define	COMPY_RTCP_RR   201
#define	COMPY_RTCP_SDES   202
#define	COMPY_RTCP_BYE   203
#define	COMPY_RTCP_APP   204
#define	COMPY_RTCP_SDES_CNAME   1
#define	COMPY_RTCP_MAX_PACKET_SIZE   512

Functions
size_t	Compy_RtcpSenderReport_serialize (Compy_RtcpSenderInfo info, const char *cname, uint8_t buffer[restrict]) COMPY_PRIV_MUST_USE
	Serializes a compound SR + SDES packet into buffer.
size_t	Compy_RtcpBye_serialize (uint32_t ssrc, uint8_t buffer[restrict]) COMPY_PRIV_MUST_USE
	Serializes a BYE packet into buffer.
int	Compy_RtcpHeader_deserialize (Compy_RtcpHeader *restrict self, const uint8_t *data, size_t len) COMPY_PRIV_MUST_USE
	Deserializes an RTCP common header from data.
int	Compy_RtcpReportBlock_deserialize (Compy_RtcpReportBlock *restrict self, const uint8_t *data, size_t len) COMPY_PRIV_MUST_USE
	Deserializes an RTCP Receiver Report block from data.

Detailed Description

RFC 3550 Section 6-compliant RTCP packet types.

Function Documentation

Compy_RtcpBye_serialize()

size_t Compy_RtcpBye_serialize	(	uint32_t	ssrc,
		uint8_t	buffer[restrict]
	)

Serializes a BYE packet into buffer.

Parameters

[in]	ssrc	The SSRC to include in the BYE.
[out]	buffer	Output buffer, must be at least 8 bytes.

Precondition

buffer != NULL

Returns

The total number of bytes written.

Compy_RtcpHeader_deserialize()

int Compy_RtcpHeader_deserialize	(	Compy_RtcpHeader *restrict	self,
		const uint8_t *	data,
		size_t	len
	)

Deserializes an RTCP common header from data.

Parameters

[out]	self	The parsed header.
[in]	data	The buffer to parse.
[in]	len	Length of data.

Precondition

self != NULL

data != NULL

Returns

0 on success, -1 if data is too short or version is not 2.

Compy_RtcpReportBlock_deserialize()

int Compy_RtcpReportBlock_deserialize	(	Compy_RtcpReportBlock *restrict	self,
		const uint8_t *	data,
		size_t	len
	)

Deserializes an RTCP Receiver Report block from data.

Parameters

[out]	self	The parsed report block.
[in]	data	The buffer to parse (must point past the RTCP header).
[in]	len	Length of data.

Precondition

self != NULL

data != NULL

Returns

0 on success, -1 if data is too short.

Compy_RtcpSenderReport_serialize()

size_t Compy_RtcpSenderReport_serialize	(	Compy_RtcpSenderInfo	info,
		const char *	cname,
		uint8_t	buffer[restrict]
	)

Serializes a compound SR + SDES packet into buffer.

Parameters

[in]	info	The sender report information.
[in]	cname	The CNAME string for the SDES item.
[out]	buffer	Output buffer, must be at least COMPY_RTCP_MAX_PACKET_SIZE bytes.

Precondition

cname != NULL

buffer != NULL

Returns

The total number of bytes written.
