transport.h File Reference

RTSP data transport (level 4) implementations. More...

#include <compy/droppable.h>
#include <compy/io_vec.h>
#include <compy/writer.h>
#include <interface99.h>
#include <compy/priv/compiler_attrs.h>

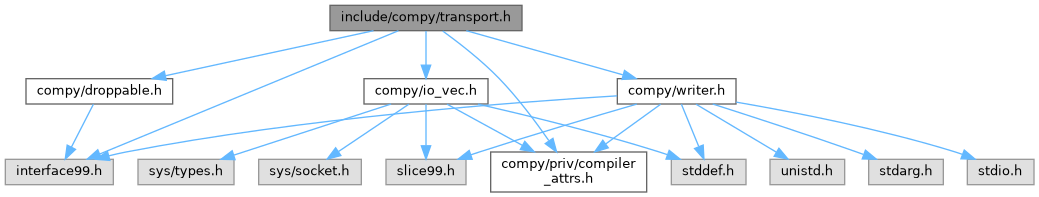

Include dependency graph for transport.h:

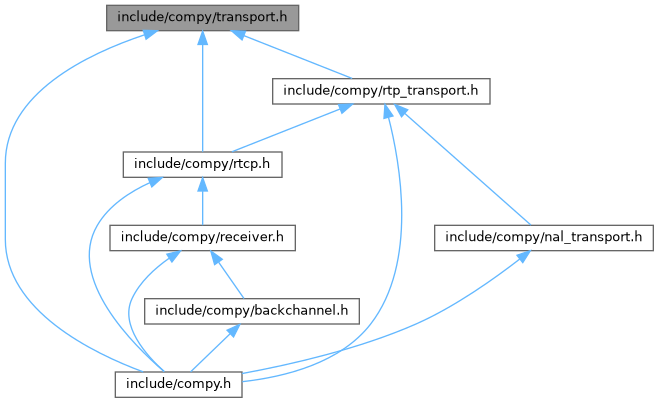

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	Compy_Transport_IFACE
	A transport-level RTSP data transmitter.
#define	Compy_Transport_EXTENDS   (Compy_Droppable)
	The superinterfaces of Compy_Transport_IFACE.

Functions
	interface99 (Compy_Transport)
	Defines the Compy_Transport interface.
Compy_Transport	compy_transport_tcp (Compy_Writer w, uint8_t channel_id, size_t max_buffer) COMPY_PRIV_MUST_USE
	Creates a new TCP transport.
Compy_Transport	compy_transport_udp (int fd) COMPY_PRIV_MUST_USE
	Creates a new UDP transport.
int	compy_dgram_socket (int af, const void *restrict addr, uint16_t port) COMPY_PRIV_MUST_USE
	Creates a new datagram socket suitable for compy_transport_udp.
int	compy_recv_dgram_socket (int af, uint16_t port) COMPY_PRIV_MUST_USE
	Creates a new datagram socket bound to a local port for receiving.
void *	compy_sockaddr_ip (const struct sockaddr *restrict addr) COMPY_PRIV_MUST_USE
	Returns a pointer to the IP address of addr.

Detailed Description

RTSP data transport (level 4) implementations.

Macro Definition Documentation

Compy_Transport_IFACE

#define Compy_Transport_IFACE

Value:

                                                                               \
    /*                                                                         \
     * Transmits a slice of I/O vectors @p bufs.                               \
     *                                                                         \
     * @return -1 if an I/O error occurred and sets `errno` appropriately, 0   \
     * on success.                                                             \
     */                                                                        \
    vfunc99(int, transmit, VSelf99, Compy_IoVecSlice bufs)                     \
    vfunc99(bool, is_full, VSelf99)

A transport-level RTSP data transmitter.

See Interface99 for the macro usage.

Function Documentation

compy_dgram_socket()

int compy_dgram_socket	(	int	af,
		const void *restrict	addr,
		uint16_t	port
	)

Creates a new datagram socket suitable for compy_transport_udp.

The algorithm is:

1. Create a socket using socket(af, SOCK_DGRAM, 0).
2. Connect this socket to addr with port.
3. Set the IP_PMTUDISC_WANT option to allow IP fragmentation.

Parameters

[in]	af	The socket namespace. Can be AF_INET or AF_INET6; if none of them, returns -1 and sets errno to EAFNOSUPPORT.
[in]	addr	The destination IP address: struct in_addr for AF_INET and struct in6_addr for AF_INET6.
[in]	port	The destination IP port in the host byte order.

Returns

A valid file descriptor or -1 on error (and sets errno appropriately).

compy_recv_dgram_socket()

int compy_recv_dgram_socket	(	int	af,
		uint16_t	port
	)

Creates a new datagram socket bound to a local port for receiving.

Mirrors compy_dgram_socket (which creates a connected send socket). Suitable for receiving backchannel RTP or RTCP data.

Parameters

[in]	af	The address family (AF_INET or AF_INET6).
[in]	port	The local port to bind to (host byte order).

Returns

A valid file descriptor or -1 on error.

compy_sockaddr_ip()

void * compy_sockaddr_ip

(

const struct sockaddr *restrict

addr

)

Returns a pointer to the IP address of addr.

Currently, only AF_INET and AF_INET6 are supported. Otherwise, NULL is returned.

Precondition

addr != NULL

compy_transport_tcp()

Compy_Transport compy_transport_tcp	(	Compy_Writer	w,
		uint8_t	channel_id,
		size_t	max_buffer
	)

Creates a new TCP transport.

Parameters

[in]	w	The writer to be provided with data.
[in]	channel_id	A one-byte channel identifier, as defined in https://datatracker.ietf.org/doc/html/rfc2326#section-10.12.

Precondition

w.self && w.vptr

compy_transport_udp()

Compy_Transport compy_transport_udp

(

int

fd

)

Creates a new UDP transport.

Strictly speaking, it can handle any datagram-oriented protocol, not necessarily UDP. E.g., you may use a SOCK_SEQPACKET socket for local communication.

Parameters

[in]

fd

The socket file descriptor to be provided with data.

Precondition

fd >= 0

interface99()

interface99

(

Compy_Transport

)

Defines the Compy_Transport interface.

See Interface99 for the macro usage.
