RTCP session management (RFC 3550 Section 6). More...

#include <compy/droppable.h>
#include <compy/rtp_transport.h>
#include <compy/transport.h>
#include <compy/types/rtcp.h>
#include <compy/priv/compiler_attrs.h>

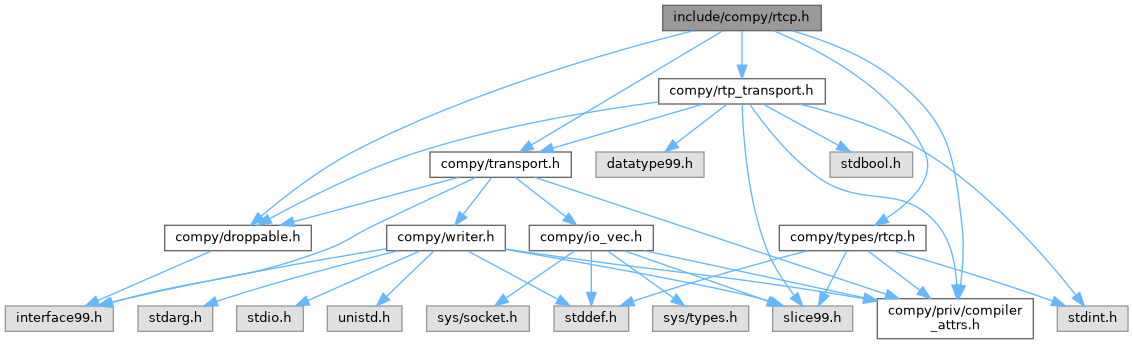

Include dependency graph for rtcp.h:

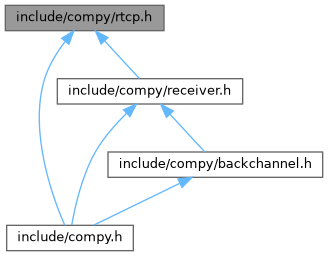

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef struct Compy_Rtcp	Compy_Rtcp

Functions
Compy_Rtcp *	Compy_Rtcp_new (Compy_RtpTransport rtp, Compy_Transport rtcp_transport, const char cname) COMPY_PRIV_MUST_USE
	Creates a new RTCP session context.

int	Compy_Rtcp_send_sr (Compy_Rtcp *self) COMPY_PRIV_MUST_USE
	Generates and sends a compound SR + SDES packet.

int	Compy_Rtcp_send_bye (Compy_Rtcp *self) COMPY_PRIV_MUST_USE
	Generates and sends a BYE packet.

int	Compy_Rtcp_handle_incoming (Compy_Rtcp self, const uint8_t data, size_t len)
	Processes an incoming RTCP packet.

const Compy_RtcpReportBlock *	Compy_Rtcp_get_last_rr (const Compy_Rtcp *self) COMPY_PRIV_MUST_USE
	Returns the last received Receiver Report block, or NULL if none received.

	declImplExtern99 (Compy_Droppable, Compy_Rtcp)

Detailed Description

RTCP session management (RFC 3550 Section 6).

Provides Sender Report generation, BYE signaling, and incoming Receiver Report parsing. The application is responsible for calling Compy_Rtcp_send_sr periodically (recommended interval: 5 seconds).

Function Documentation

◆ Compy_Rtcp_get_last_rr()

const Compy_RtcpReportBlock * Compy_Rtcp_get_last_rr ( const Compy_Rtcp * self )

Returns the last received Receiver Report block, or NULL if none received.

Precondition: self != NULL

◆ Compy_Rtcp_handle_incoming()

int Compy_Rtcp_handle_incoming	(	Compy_Rtcp *	self,
		const uint8_t *	data,
		size_t	len
	)

Processes an incoming RTCP packet.

Currently handles Receiver Report (RR) packets, storing the first report block for later retrieval via Compy_Rtcp_get_last_rr.

Parameters

[in]	self	The RTCP session.
[in]	data	The raw RTCP packet data.
[in]	len	Length of `data`.

Precondition: self != NULL; data != NULL

Returns: 0 on success, -1 on parse error.

◆ Compy_Rtcp_new()

Compy_Rtcp * Compy_Rtcp_new	(	Compy_RtpTransport *	rtp,
		Compy_Transport	rtcp_transport,
		const char *	cname
	)

Creates a new RTCP session context.

Parameters

[in]	rtp	The RTP transport to read statistics from (not owned).
[in]	rtcp_transport	The transport for sending RTCP packets (port+1 or channel+1).
[in]	cname	The CNAME identifier for SDES (e.g., "camera@192.168.1.1").

Precondition: rtp != NULL; rtcp_transport.self && rtcp_transport.vptr; cname != NULL

◆ Compy_Rtcp_send_bye()

int Compy_Rtcp_send_bye ( Compy_Rtcp * self )

Generates and sends a BYE packet.

Precondition: self != NULL

Returns: -1 on I/O error, 0 on success.

◆ Compy_Rtcp_send_sr()

int Compy_Rtcp_send_sr ( Compy_Rtcp * self )

Generates and sends a compound SR + SDES packet.

Reads current statistics from the associated RTP transport and sends a Sender Report followed by an SDES chunk containing the CNAME.

Precondition: self != NULL

Returns: -1 on I/O error, 0 on success.
