nal_transport.h File Reference

An RTP/NAL data transport. More...

#include <compy/droppable.h>
#include <compy/nal.h>
#include <compy/rtp_transport.h>
#include <stddef.h>
#include <stdint.h>
#include <compy/priv/compiler_attrs.h>

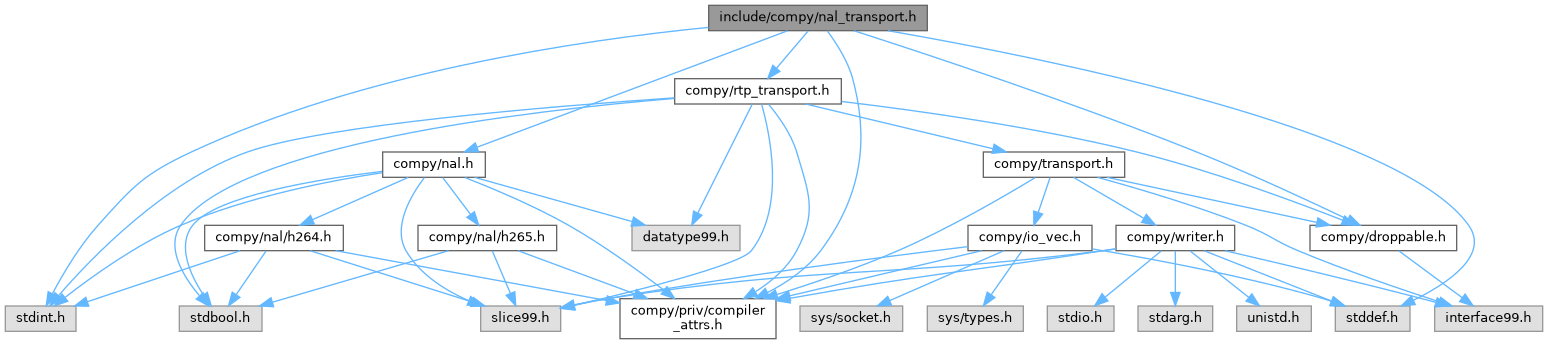

Include dependency graph for nal_transport.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Compy_NalTransportConfig
	The configuration structure for Compy_NalTransport. More...

Macros
#define	COMPY_MAX_H264_NALU_SIZE   1200
	The default value for Compy_NalTransportConfig.max_h264_nalu_size.
#define	COMPY_MAX_H265_NALU_SIZE   4096
	The default value for Compy_NalTransportConfig.max_h265_nalu_size.

Typedefs
typedef struct Compy_NalTransport	Compy_NalTransport
	An RTP/NAL data transport.

Functions
Compy_NalTransportConfig	Compy_NalTransportConfig_default (void) COMPY_PRIV_MUST_USE
	Returns the default Compy_NalTransportConfig.
Compy_NalTransport *	Compy_NalTransport_new (Compy_RtpTransport *t) COMPY_PRIV_MUST_USE
	Creates a new RTP/NAL transport with the default configuration.
Compy_NalTransport *	Compy_NalTransport_new_with_config (Compy_RtpTransport *t, Compy_NalTransportConfig config) COMPY_PRIV_MUST_USE
	Creates a new RTP/NAL transport with a custom configuration.
int	Compy_NalTransport_send_packet (Compy_NalTransport *self, Compy_RtpTimestamp ts, Compy_NalUnit nalu) COMPY_PRIV_MUST_USE
	Sends an RTP/NAL packet.
	declImplExtern99 (Compy_Droppable, Compy_NalTransport)
	Implements Compy_Droppable_IFACE for Compy_NalTransport.
bool	Compy_NalTransport_is_full (Compy_NalTransport *self)

Detailed Description

An RTP/NAL data transport.

See also

RTP Payload Format for H.264 Video: https://datatracker.ietf.org/doc/html/rfc6184

RTP Payload Format for High Efficiency Video Coding (HEVC): https://datatracker.ietf.org/doc/html/rfc7798

Function Documentation

Compy_NalTransport_new()

Compy_NalTransport * Compy_NalTransport_new

(

Compy_RtpTransport *

t

)

Creates a new RTP/NAL transport with the default configuration.

Parameters

[in]

t

The underlying RTP transport.

Precondition

t != NULL

Compy_NalTransport_new_with_config()

Compy_NalTransport * Compy_NalTransport_new_with_config	(	Compy_RtpTransport *	t,
		Compy_NalTransportConfig	config
	)

Creates a new RTP/NAL transport with a custom configuration.

Parameters

[in]	t	The underlying RTP transport.
[in]	config	The transmission configuration structure.

Precondition

t != NULL

Compy_NalTransport_send_packet()

int Compy_NalTransport_send_packet	(	Compy_NalTransport *	self,
		Compy_RtpTimestamp	ts,
		Compy_NalUnit	nalu
	)

Sends an RTP/NAL packet.

If nalu is larger than the limit values from Compy_NalTransportConfig (configured via Compy_NalTransport_new), nalu will be fragmented.

Parameters

[out]	self	The RTP/NAL transport for sending this packet.
[in]	ts	The RTP timestamp for this packet.
[in]	nalu	The NAL unit of this RTP packet.

Precondition

self != NULL

Returns

-1 if an I/O error occurred and sets errno appropriately, 0 on success.

Compy_NalTransportConfig_default()

Compy_NalTransportConfig Compy_NalTransportConfig_default

(

void

)

Returns the default Compy_NalTransportConfig.

The default values are:

• max_h264_nalu_size is COMPY_MAX_H264_NALU_SIZE.
• max_h265_nalu_size is COMPY_MAX_H265_NALU_SIZE.

declImplExtern99()

declImplExtern99	(	Compy_Droppable	,
		Compy_NalTransport
	)

Implements Compy_Droppable_IFACE for Compy_NalTransport.

See Interface99 for the macro usage.
