controller.h File Reference

An RTSP requests controller. More...

#include <compy/context.h>
#include <compy/droppable.h>
#include <compy/types/request.h>
#include <compy/writer.h>
#include <stddef.h>
#include <interface99.h>

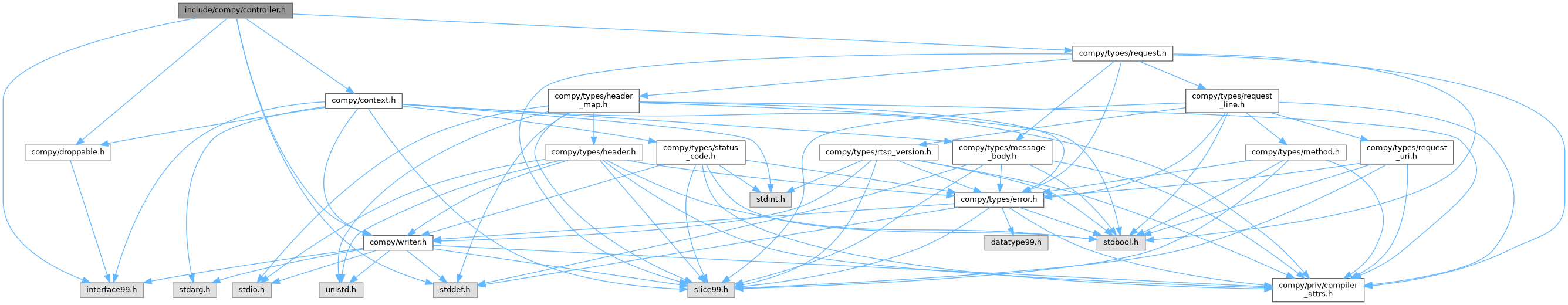

Include dependency graph for controller.h:
This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros

#define Compy_Controller_IFACE
 A controller that handles incoming RTSP requests.

#define Compy_Controller_EXTENDS   (Compy_Droppable)
 The superinterfaces of Compy_Controller_IFACE.


Enumerations

enum  Compy_ControlFlow { Compy_ControlFlow_Break , Compy_ControlFlow_Continue }
 Whether to stop or continue some processing. More...


Functions

 interface99 (Compy_Controller)
 Defines the Compy_Controller interface.

void compy_dispatch (Compy_Writer conn, Compy_Controller controller, const Compy_Request *restrict req)
 Dispatches an incoming request to controller.


Detailed Description

An RTSP requests controller.

Macro Definition Documentation

◆ Compy_Controller_IFACE

#define Compy_Controller_IFACE
Value:
\
/* \
* Handles `OPTIONS` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.1>. \
*/ \
vfunc99( \
void, options, VSelf99, Compy_Context *ctx, const Compy_Request *req) \
\
/* \
* Handles `DESCRIBE` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.2>. \
*/ \
vfunc99( \
void, describe, VSelf99, Compy_Context *ctx, const Compy_Request *req) \
\
/* \
* Handles `SETUP` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.4>. \
*/ \
vfunc99( \
void, setup, VSelf99, Compy_Context *ctx, const Compy_Request *req) \
\
/* \
* Handles `PLAY` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.5>. \
*/ \
vfunc99(void, play, VSelf99, Compy_Context *ctx, const Compy_Request *req) \
\
/* \
* Handles `PAUSE` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.6>. \
*/ \
vfunc99( \
void, pause_method, VSelf99, Compy_Context *ctx, \
const Compy_Request *req) \
\
/* \
* Handles `TEARDOWN` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.7>. \
*/ \
vfunc99( \
void, teardown, VSelf99, Compy_Context *ctx, const Compy_Request *req) \
\
/* \
* Handles `GET_PARAMETER` as defined in \
* <https://datatracker.ietf.org/doc/html/rfc2326#section-10.8>. \
*/ \
vfunc99( \
void, get_parameter, VSelf99, Compy_Context *ctx, \
const Compy_Request *req) \
\
/* \
* Handles a command that is not one of the above. \
*/ \
vfunc99( \
void, unknown, VSelf99, Compy_Context *ctx, const Compy_Request *req) \
\
/* \
* A method that is invoked _before_ the actual request handling. \
*/ \
vfunc99( \
Compy_ControlFlow, before, VSelf99, Compy_Context *ctx, \
const Compy_Request *req) \
\
/* \
* A method that is invoked _after_ request handling. \
*/ \
vfunc99( \
void, after, VSelf99, ssize_t ret, Compy_Context *ctx, \
const Compy_Request *req)
Compy_ControlFlow
Compy_ControlFlow
Whether to stop or continue some processing.
Definition controller.h:20
Compy_Context
Definition context.c:10
Compy_Request
An RTSP request.
Definition request.h:21

A controller that handles incoming RTSP requests.

All RTSP command handlers accept the following parameters:

  • ctx – a request context used to respond to your RTSP client.
  • req – a fully parsed request object.

Enumeration Type Documentation

◆ Compy_ControlFlow

enum Compy_ControlFlow

Whether to stop or continue some processing.

Enumerator
Compy_ControlFlow_Break

Break processing.

Compy_ControlFlow_Continue

Continue processing.

Function Documentation

◆ compy_dispatch()

void compy_dispatch ( Compy_Writer  conn,
Compy_Controller  controller,
const Compy_Request *restrict  req
)

Dispatches an incoming request to controller.

The algorithm is as follows:

  1. Setup a request context Compy_Context. Later you can use it to configure an RTSP response via compy_header, compy_body, and similar.
  2. Invoke the before method of controller. Here you should do some preliminary stuff like logging a request or setting up initial response headers via compy_header. If before returns Compy_ControlFlow_Break, jump to step #4.
  3. Invoke a corresponding command handler of controller. Here you should handle the request and respond to your client via compy_respond/compy_respond_ok or similar.
  4. Invoke the after method of controller. Here you automatically receive the return value of compy_respond_* (invoked during one of the previous steps). If it is <0, it means that something bad happened so that the handler has not been able to respond properly.
  5. Drop the request context.
Parameters
[out]connThe writer to send RTSP responses.
[in]controllerThe controller to handle the incoming request req.
[in]reqThe fully parsed RTSP request object.
Precondition
conn.self && conn.vptr
controller.self && controller.vptr
req != NULL

◆ interface99()

interface99 ( Compy_Controller  )

Defines the Compy_Controller interface.

See Interface99 for the macro usage.
